Authorised dealerSANY Aerial Work Platforms
Scissor lifts from 6.5m working height, boom lifts to 41.6m platform height — for Singapore's construction, port and warehouse sectors.
SANYChoosing a platform
C&C Corporation Service is an authorised dealer for SANY aerial work platforms in Singapore.

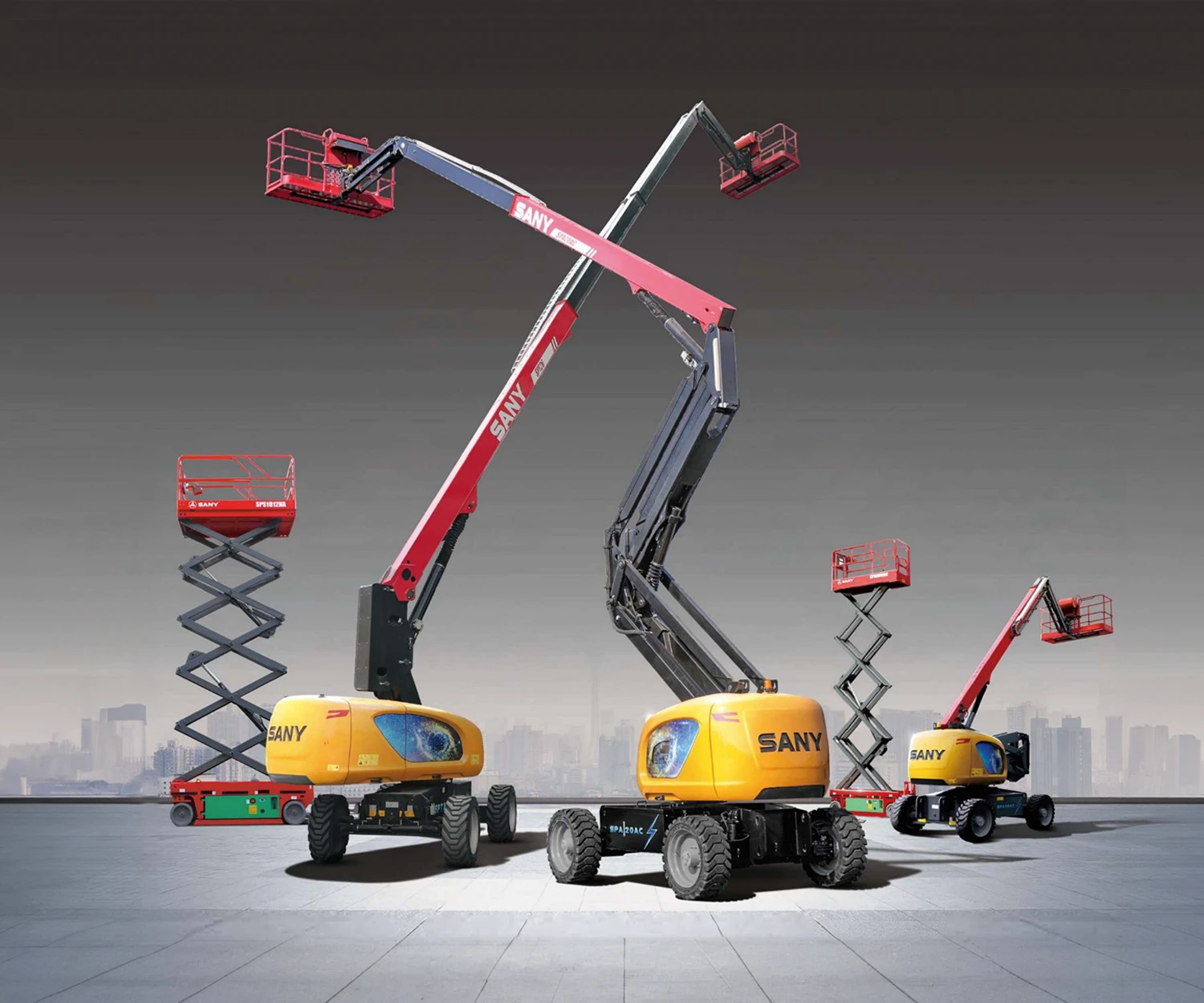

The range covers scissor lifts and boom lifts (MEWPs) for indoor fit-out, warehouse and facility maintenance, façade access and construction sites, for purchase, or on short and long-term rental.
Lithium vs Diesel
The range splits two ways. Battery-electric and lithium units run clean and quiet, for indoor work and finished floors. Diesel four-wheel-drive units are built for rough ground and open sites. Scissor lifts give the largest platform area; boom lifts give horizontal outreach over obstacles.
Height is one of three constraints. Door and goods-lift clearance sets the machine width; floor loading sets the weight. All three figures are in the tables below.
6.5m – 15.8m Working HeightScissor lifts
Vertical lift over a fixed footprint, with wide platforms and extension decks. Every model is battery powered, so all of them work indoors.
Compact indoor accessDC series
| Model | Working height | Platform capacity | Machine width | Weight | Power |
|---|---|---|---|---|---|
| SPS0407DC | 6.50m | 230kg | 0.76m | 950kg | DC24V, 2×12V/115Ah |
| SPS0608DC | 7.60m | 230kg | 0.81m | 1,250kg | DC24V, 2×12V/115Ah |

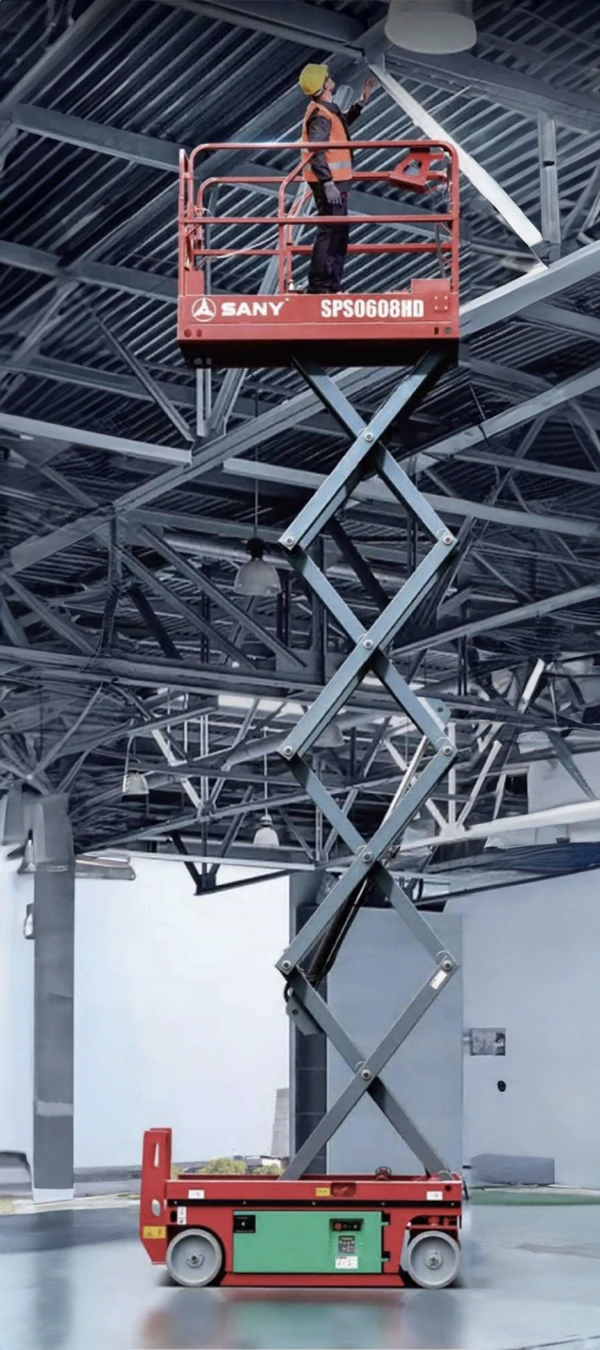

Hydraulic drive, 7.8mHD series
| Model | Working height | Platform capacity | Machine width | Weight | Drive |
|---|---|---|---|---|---|
| SPS0608HD | 7.80m | 250kg | 0.81m | 1,360kg | Hydraulic, 2×12V/155Ah |
Hydraulic drive, 10m to 15.8mHA series
| Model | Working height | Platform capacity | Machine width | Weight |
|---|---|---|---|---|
| SPS0808HA | 10.00m | 250kg | 0.83m | 2,150kg |
| SPS1012HA | 12.00m | 350kg | 1.18m | 2,750kg |
| SPS1212HA | 14.00m | 350kg | 1.18m | 2,900kg |
| SPS1414HA | 15.80m | 350kg | 1.40m | 3,540kg |
SPS1414HA is offered with a 24V/230Ah lithium pack. All four carry an extension deck rated at 120kg.
AC drive, lithium or lead-acidAC series
| Model | Working height indoor / outdoor | Platform capacity | Machine width | Weight |
|---|---|---|---|---|
| SPS0608AC | 7.8m | 250kg | 0.81m | 1,490kg |
| SPS0808AC | 10m / 8m | 230kg | 0.83m | 2,360kg |
| SPS1012AC | 12m / 10m | 350kg | 1.18m | 2,540kg |
| SPS1212AC | 14m / 10m | 350kg | 1.18m | 3,100kg |
The AC series carries a lower outdoor rating than indoor.

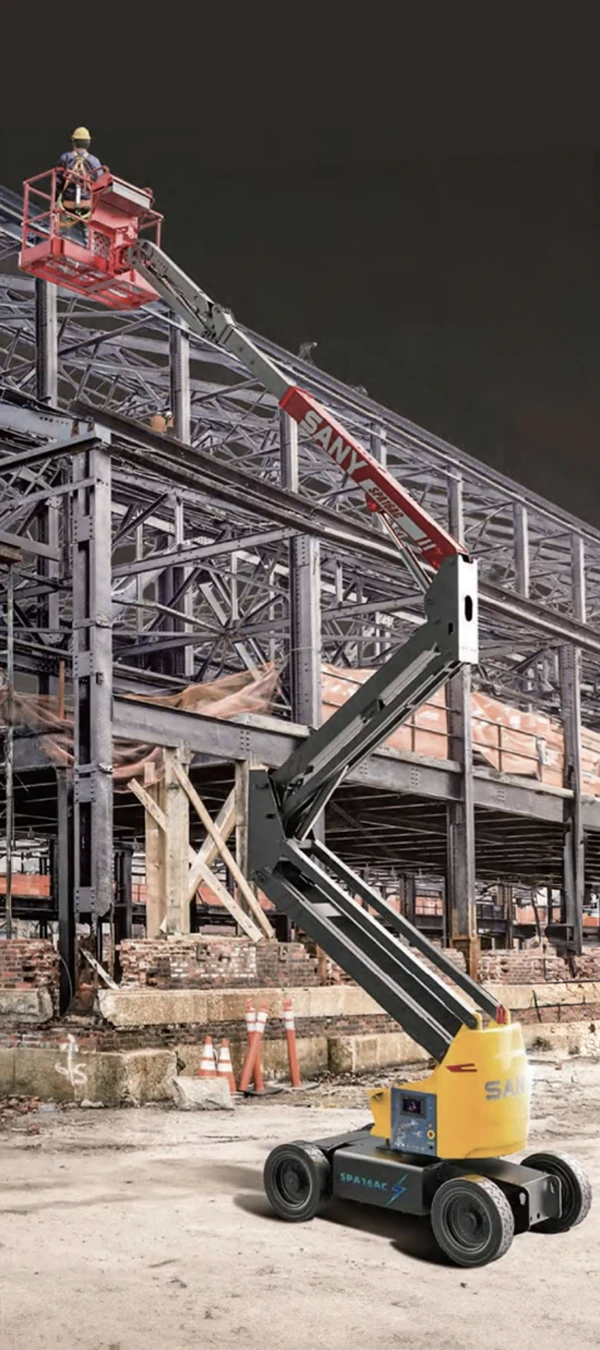

14m – 41.6m Platform HeightBoom lifts
Reach out over obstacles rather than straight up, with the machine parked to one side of the work. Battery models work indoors; diesel models are four-wheel drive for open ground.
BatteryArticulating boom lifts
| Model | Platform height | Working height | Horizontal outreach | Platform capacity | Weight | Power |
|---|---|---|---|---|---|---|
| SPA14AC | 14.0m | 16.0m | 7.25m | 248kg | 6,500kg | Lithium 51.2V/315Ah |
| SPA16AC | 15.7m | 17.7m | 9.00m | 248kg | 7,000kg | Lithium 51.2V/315Ah |
| SPA20AC | 20.0m | 22.0m | 12.4m | 258 / 320kg | 10,100kg | Lead-acid 48V/400Ah |
| SPA20AC-Li | 19.5m | 21.5m | 12.1m | 258 / 320kg | 9,150kg | Lithium 80V/320Ah |
SPA20AC-Li is the lithium version of the lead-acid SPA20AC, trading 0.5m of platform height for 950kg less machine weight. Both run four-wheel drive. SANY lists zero tail swing and 360° continuous rotation on SPA14AC and SPA16AC.
Diesel, four-wheel driveArticulating boom lifts
| Model | Platform height | Horizontal outreach | Platform capacity | Weight | Engine |
|---|---|---|---|---|---|
| SPA14 | 14.0m | 8.17m | 300kg | 7,200kg | Yanmar 3TNV88, 20.2kW |
| SPA16 | 15.8m | 10.0m | 250kg | 7,810kg | Yanmar 3TNV88, 20.2kW |
| SPA20 | 19.5m | 12.5m | 258 / 320kg | 9,560kg | Kubota V2607, 36.5kW |
SANY publishes platform height for the diesel models rather than working height. All three run foam-filled tyres and 45% gradeability.
Battery and diesel, four-wheel driveTelescopic boom lifts
| Model | Platform height | Working height | Horizontal outreach | Platform capacity | Weight | Power |
|---|---|---|---|---|---|---|
| SPT20AC | 19.8m | 21.8m | 15.2m | 230 / 300 / 450kg | 10,150kg | Lithium 76.8V/320Ah |
| SPT26AC | 26.2m | 28.2m | 19.2m | 300 / 400 / 454kg | 15,670kg | Lithium 80V/460Ah |
| SPT22 | 22.4m | 24.4m | 16.5m | 300 / 400 / 480kg | 12,700kg | Deutz D2.9 36.4kW or Kubota V2607 36.5kW |
| SPT26 | 26.7m | 28.7m | 20.3m | 300 / 400 / 480kg | 15,700kg | Kubota V3307, 55.4kW |
| SPT42 | 41.6m | — | 21.2m | 300 / 454kg | 21,800kg | Yanmar 4TNV98T, 56.5kW |
Where two or three capacity figures are shown, they are the unrestricted and restricted platform ratings — the work envelope diagrams in the catalogue show where each applies. SPT42 adds four-wheel steer; SANY publishes platform height rather than working height for it. SANY lists 360° continuous rotation on SPT20AC; SPT42 runs dual redundant control with IP67 electrical components.
Specifications are published by SANY, catalogue versions April and September 2025, and are subject to change without notice. Configurations vary and some items are optional. Confirm the specification of any machine with us before ordering.
MEWP compliance, SingaporeDocumentation, examination and handover
Every machine is delivered with the manufacturer’s manual and the documentation an Authorised Examiner will ask for at statutory examination. Operator familiarisation on the specific machine is arranged at handover; formal MEWP operator certification is a separate course through a provider accredited by the Ministry of Manpower.
Requirements are published by MOM and the Workplace Safety and Health Council.
Fitted as Standard
- Automatic pothole protection
- Tilt protection system
- Self-closing swing gate
- Emergency descent system
- Emergency stop button
- Fault diagnosis system
- Proportional controls
- Flashing amber beacon
- Safety prop
- GPS
Published by SANY as standard configuration across the DC, HD and AC scissor lift series. Configurations vary by model and order — confirm the specification of a specific machine with us.
Industry SectorsTypical Applications
Warehouse & Logistics
Racking maintenance, lighting, sprinkler and ceiling services.
Shipyard & Port
Vessel access, structural inspection, crane and gantry maintenance.
Construction & Fit-out
Façade work, external cladding, interior finishing and M&E work.
Building Maintenance
Glazing, signage, plant rooms and roof-level services.
Buy or rent
SANY aerial work platforms are available both ways. New units are specified and configured with you before order on the height, power source, tyres and platform options.
For shorter programmes or peak periods, the platforms are available on rental, short and long term. Rental also covers LIUGONG forklifts and material handling equipment; WUXIN cranes are supplied for sale.
Support after delivery
Support operates from Singapore. Our hotline is staffed during operating hours; minor faults are repaired on site where they can be resolved immediately. We arrange servicing, parts and handover.
SANY publishes over 90% part commonality within each of the scissor and boom ranges, and IP67-rated electrical components on both. Scissor models add a rust-free e-coat and powder-coat finish.
DownloadSANY Catalogue
Full model specifications, dimensions and work envelope diagrams.
