Articulating Boom liftstable sunken layout for smoother operations360continuous turntables rotation 180 platform rotation |
|

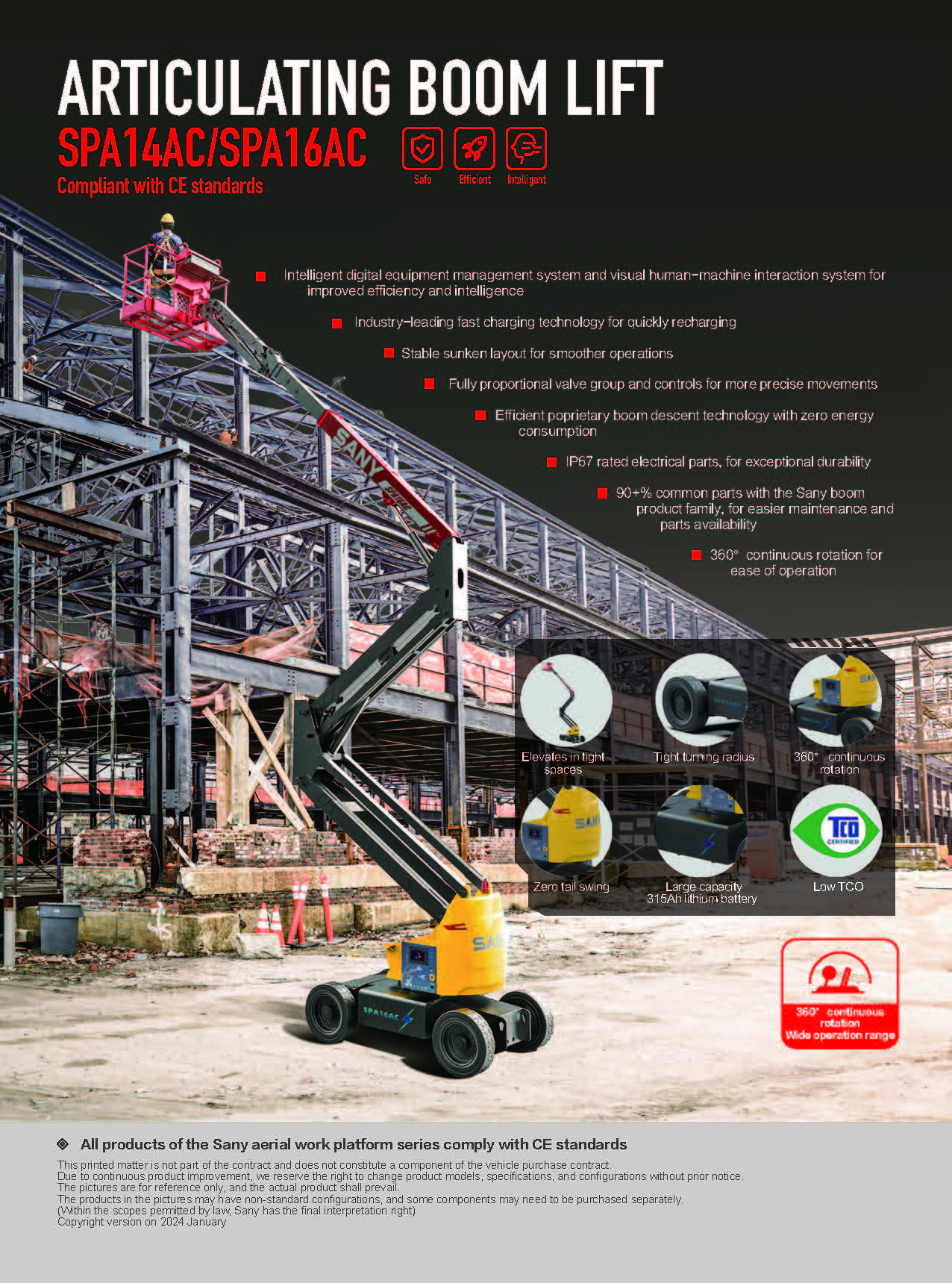

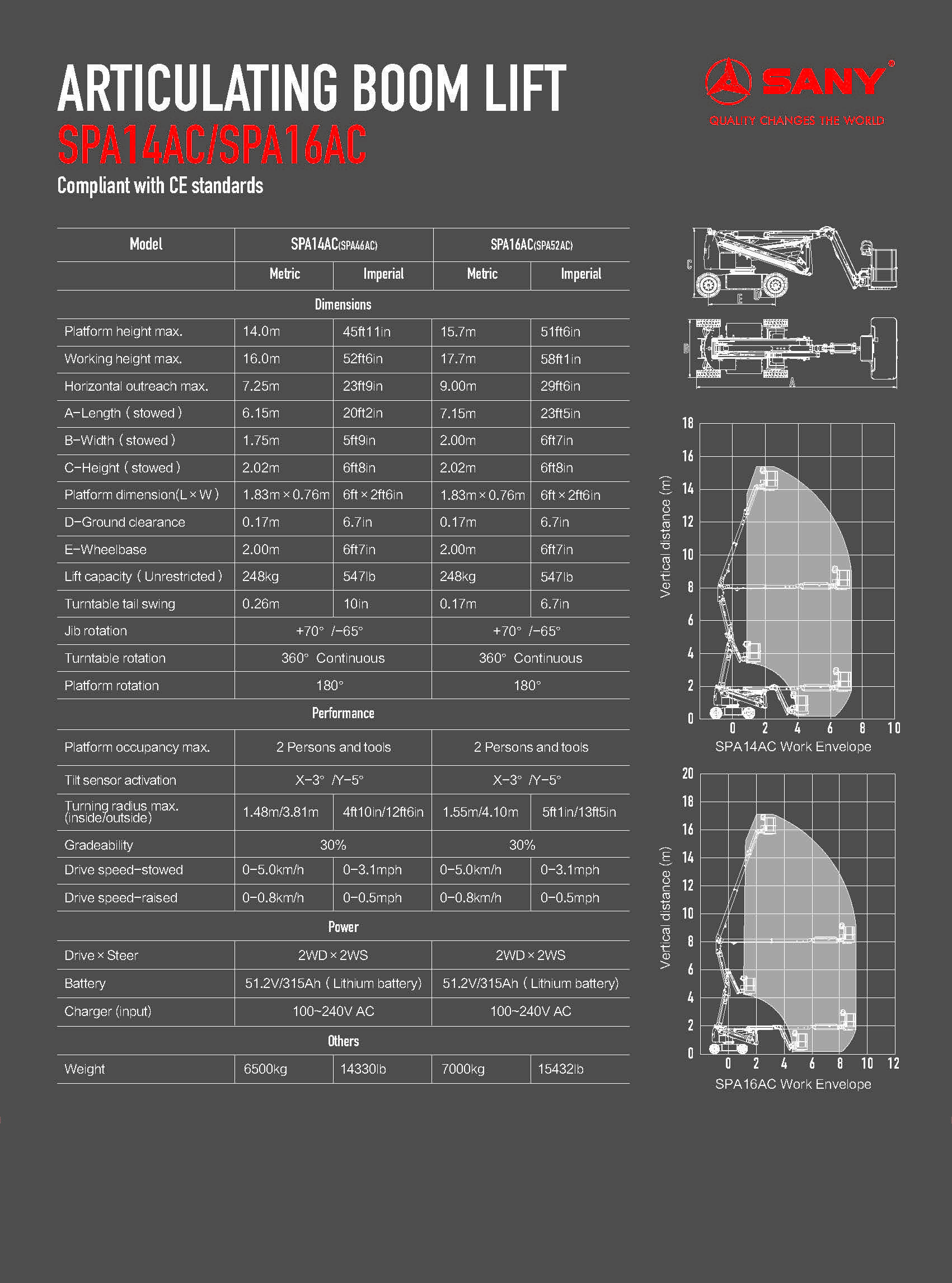

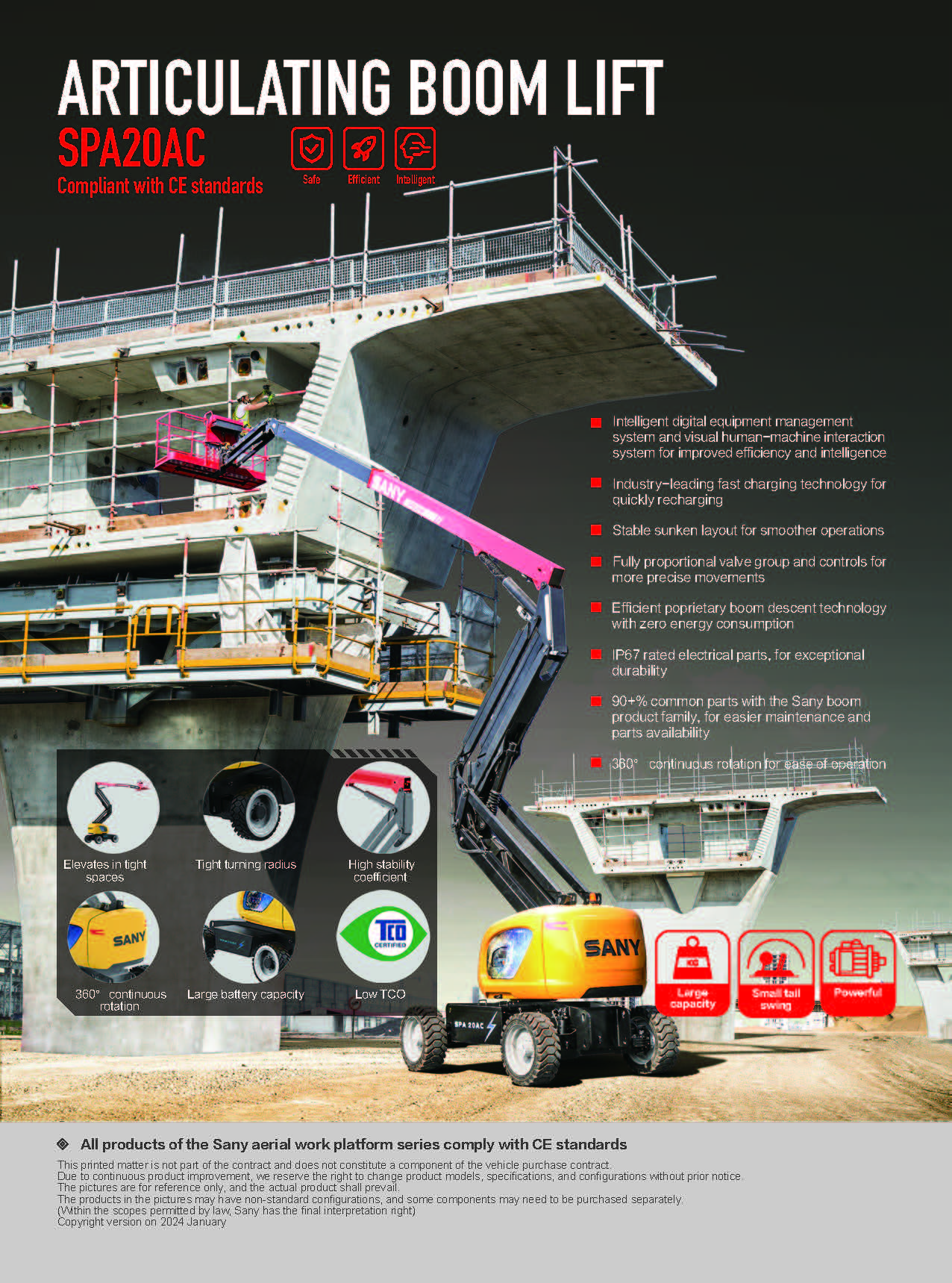

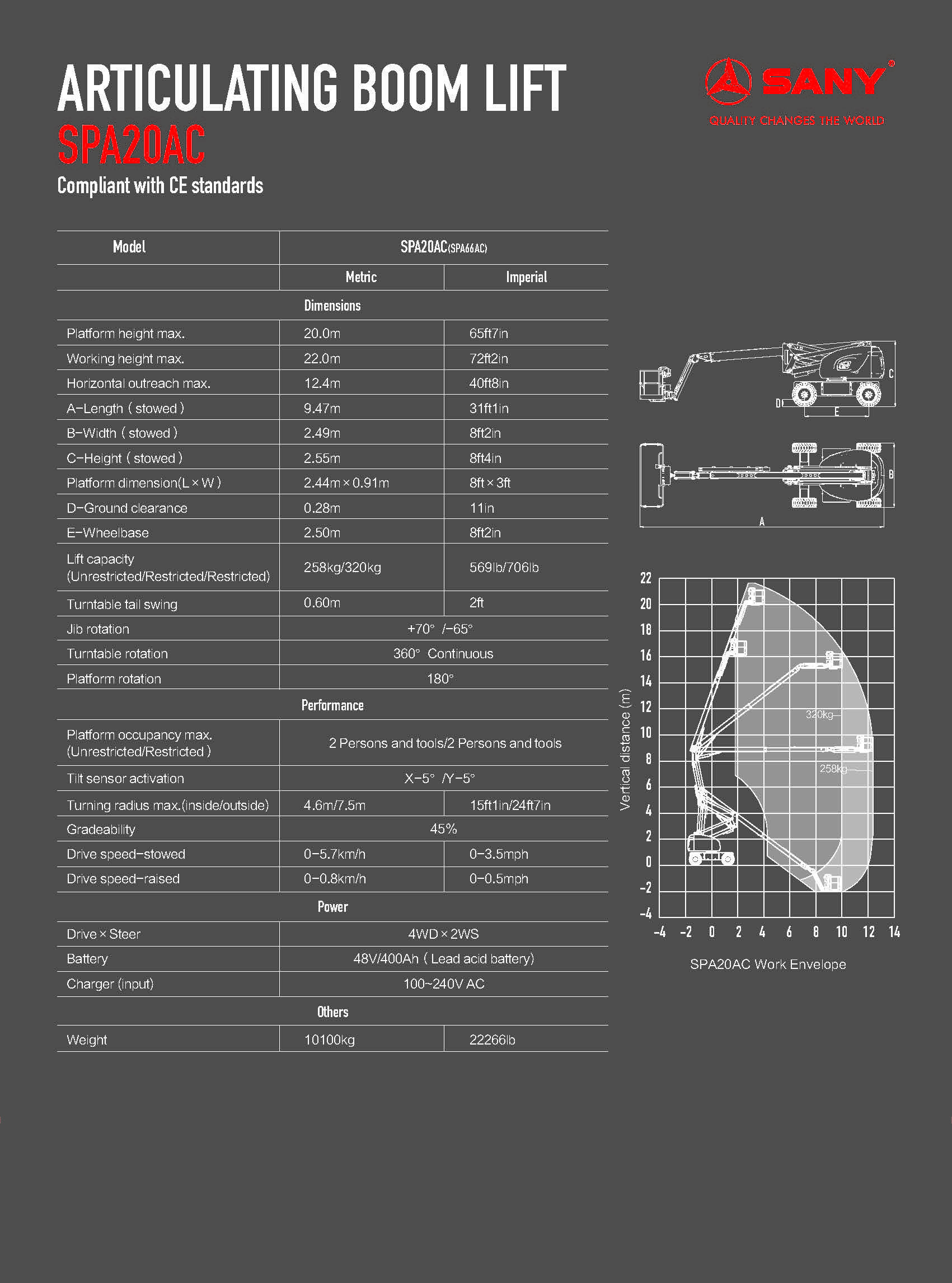

| SPA14AC Turntable tail swing: 0.26m Working height max: 16.0m Platform height max: 14.0m Horizontal outreach max:7.25m Lift capacity: 248kg(unrestricted) SPA16AC Turntable tail swing:0.17m Working height max: 17.7m Platform height max: 15.7m Horizontal outreach max:9.0m Lift capacity: 248kg(unrestricted) SPA20AC elevates in tight spaces tight turning radius, maximum 4.6m inside and 7.5m outside Turntable tail swing:0.6m Working height max: 22.0m Platform height max: 20.0m Horizontal outreach max:12.4m Lift capacity: 258/320kg (unrestricted/restricted) |
|
Telescopic Boom lift |
|

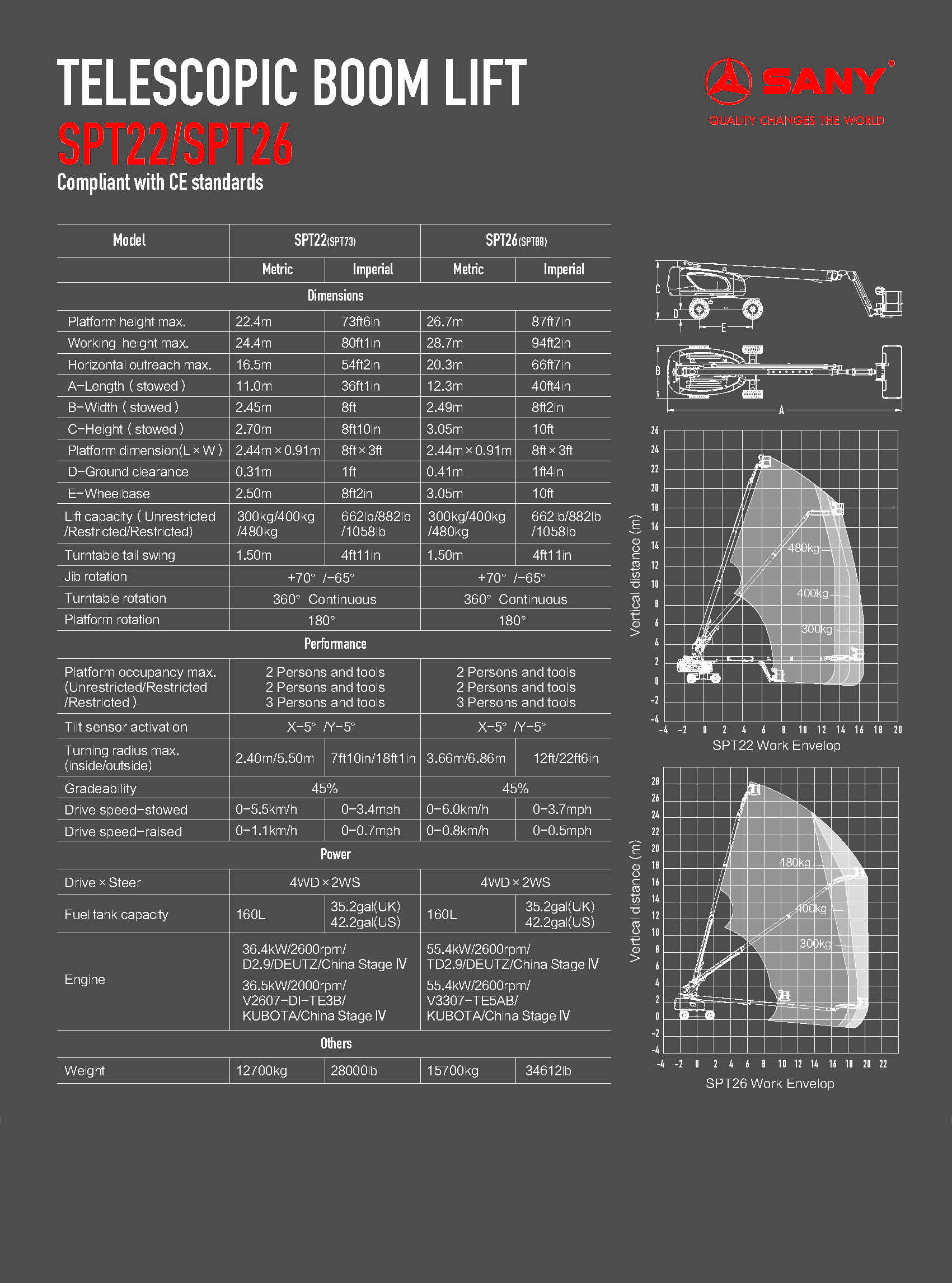

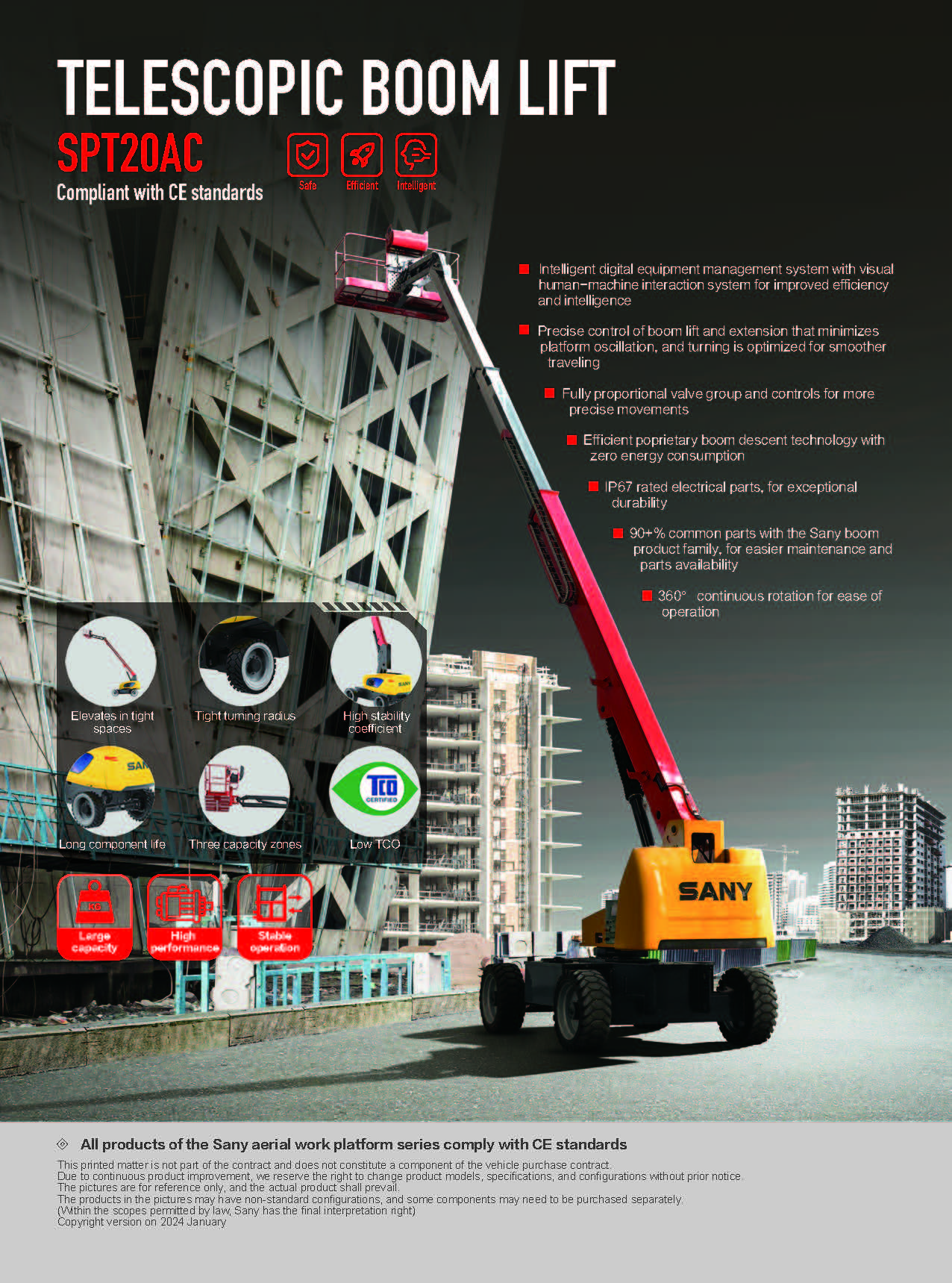

| SPT20AC elevates in tight spaces tight turning radius, maximum 4.6m inside and 7.5m outside Turntable tail swing:1.45m Working height max: 21.8m Platform height max: 19.8m Horizontal outreach max:15.2m Lift capacity: 230/300/450kg (unrestricted/restricted/restricted) SPT22 elevates in tight spaces tight turning radius, maximum 2.4m inside and 5.5m outside 3 capacity zones Turntable tail swing:1.5 Working height max: 24.4 Platform height max: 22.4 Horizontal outreach max:16.5 Lift capacity: 300/400/480kg (unrestricted/restricted/restricted) SPT26 elevates in tight spaces tight turning radius, maximum 3.66m inside and 6.86m outside 3 capacity zones Turntable tail swing:1.5m Working height max: 28.7m Platform height max: 26.7m Horizontal outreach max:20.3m Lift capacity: 300/400/480kg (unrestricted/restricted/restricted) |
|
