SANY Aerial Work Platform

MOBILE ELEVATION
WORK PLATFORMS
compliant with CE standard

SPS0407DC-G
6.5m Scissor Lift AWP

SPS0608DC-G
7.6m Scissor Lift AWP

SPS0608HA-G
7.6m Scissor Lift AWP

SPS0808HA-G
10m Scissor Lift AWP

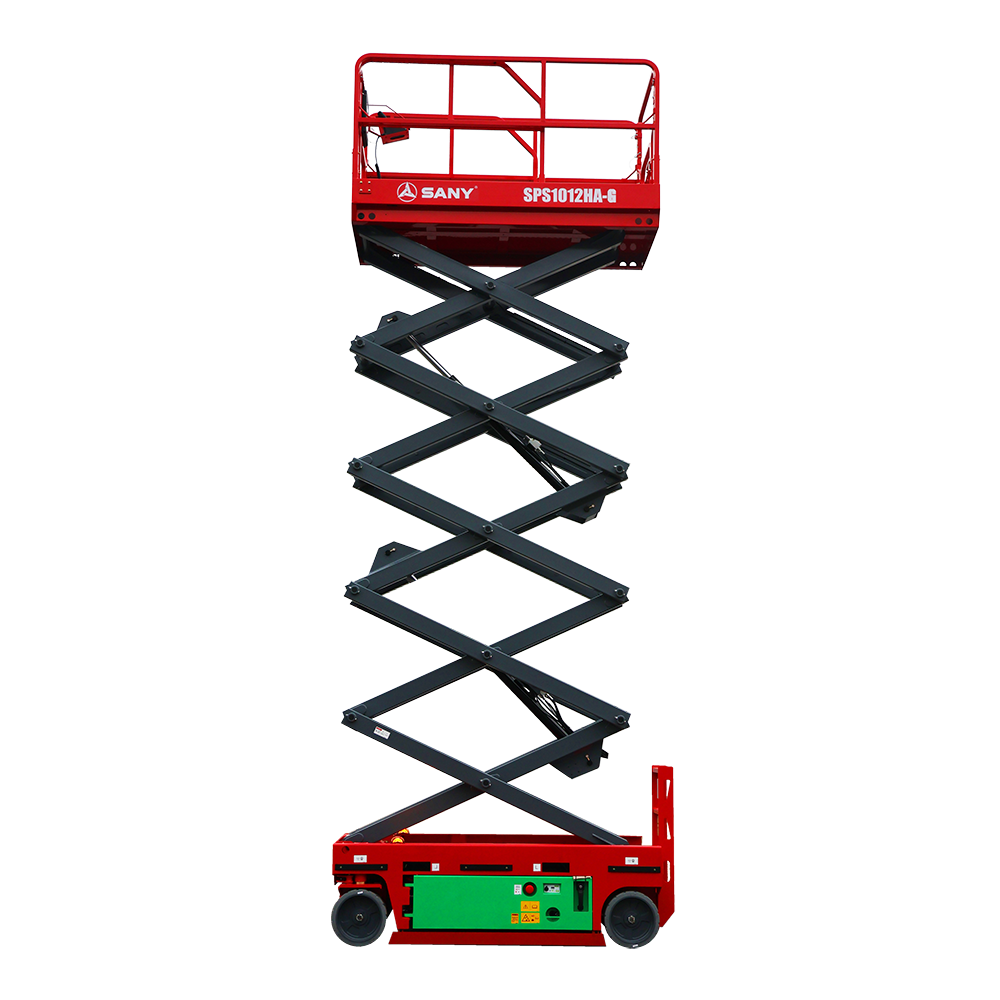

SPS1012HA-G
12m Scissor Lift AWP

SPS1212HA-G
14m Scissor Lift AWP

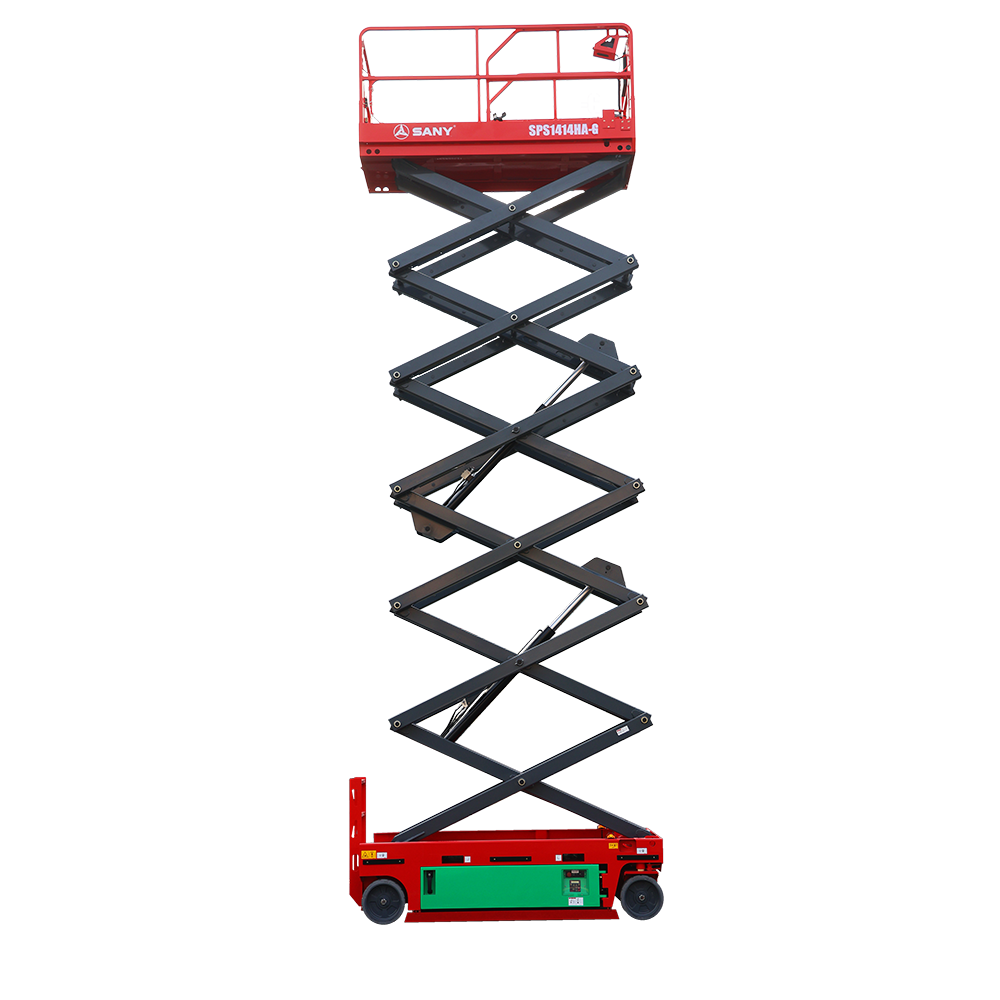

SPS1414HA-G
14m Scissor Lift AWP

SPA14AC-G
14m Scissor Lift AWP

SPA16AC-G
16m Scissor Lift AWP

SPA20AC-G
20m Scissor Lift AWP

SPA20AC-G
20m Scissor Lift AWP

SPT20AC-G
20m Scissor Lift AWP

SPT22-G
22m Scissor Lift AWP

SPT26-G
26m Scissor Lift AWP

SPT26AC-G
26m Scissor Lift AWP

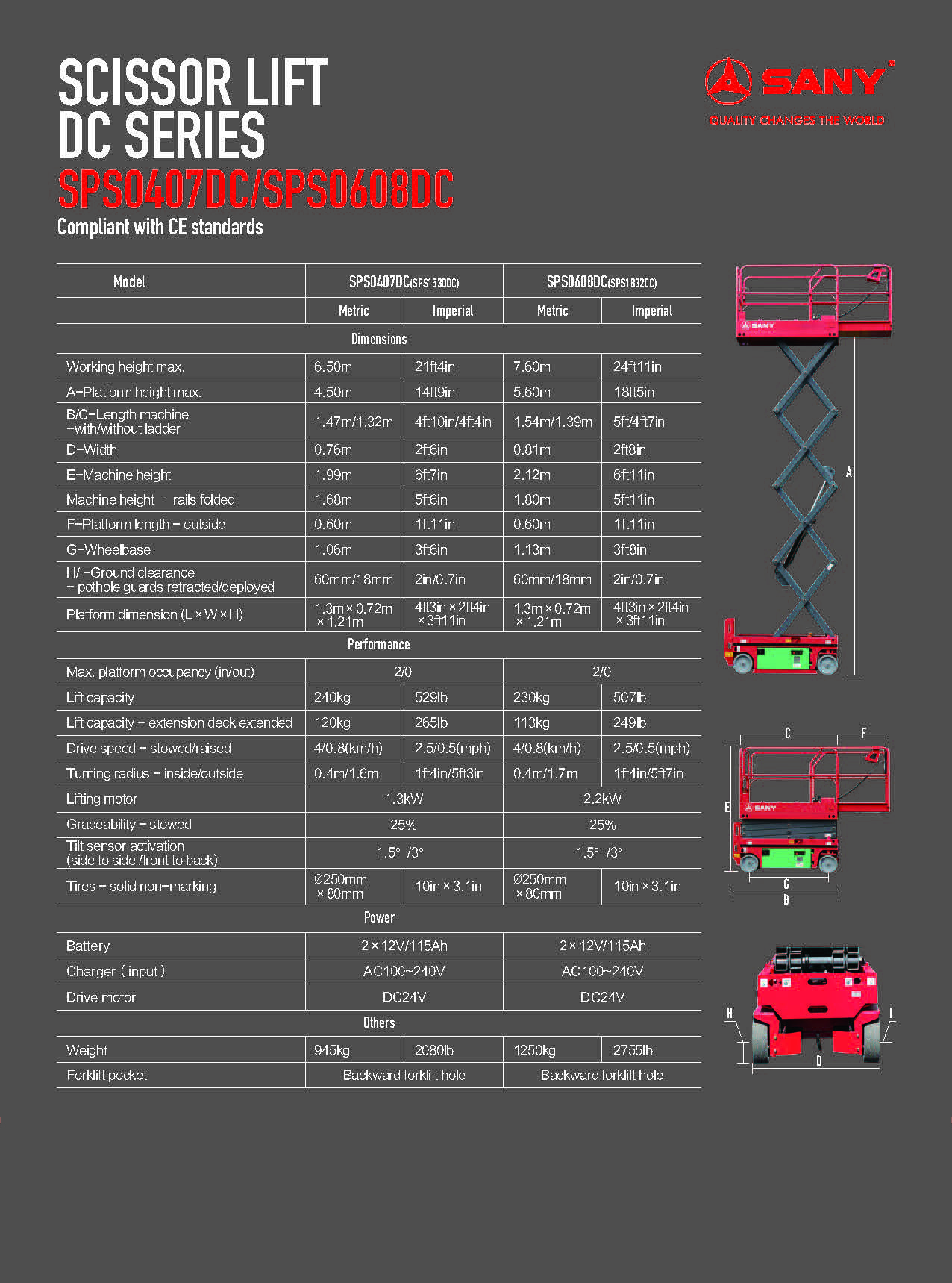

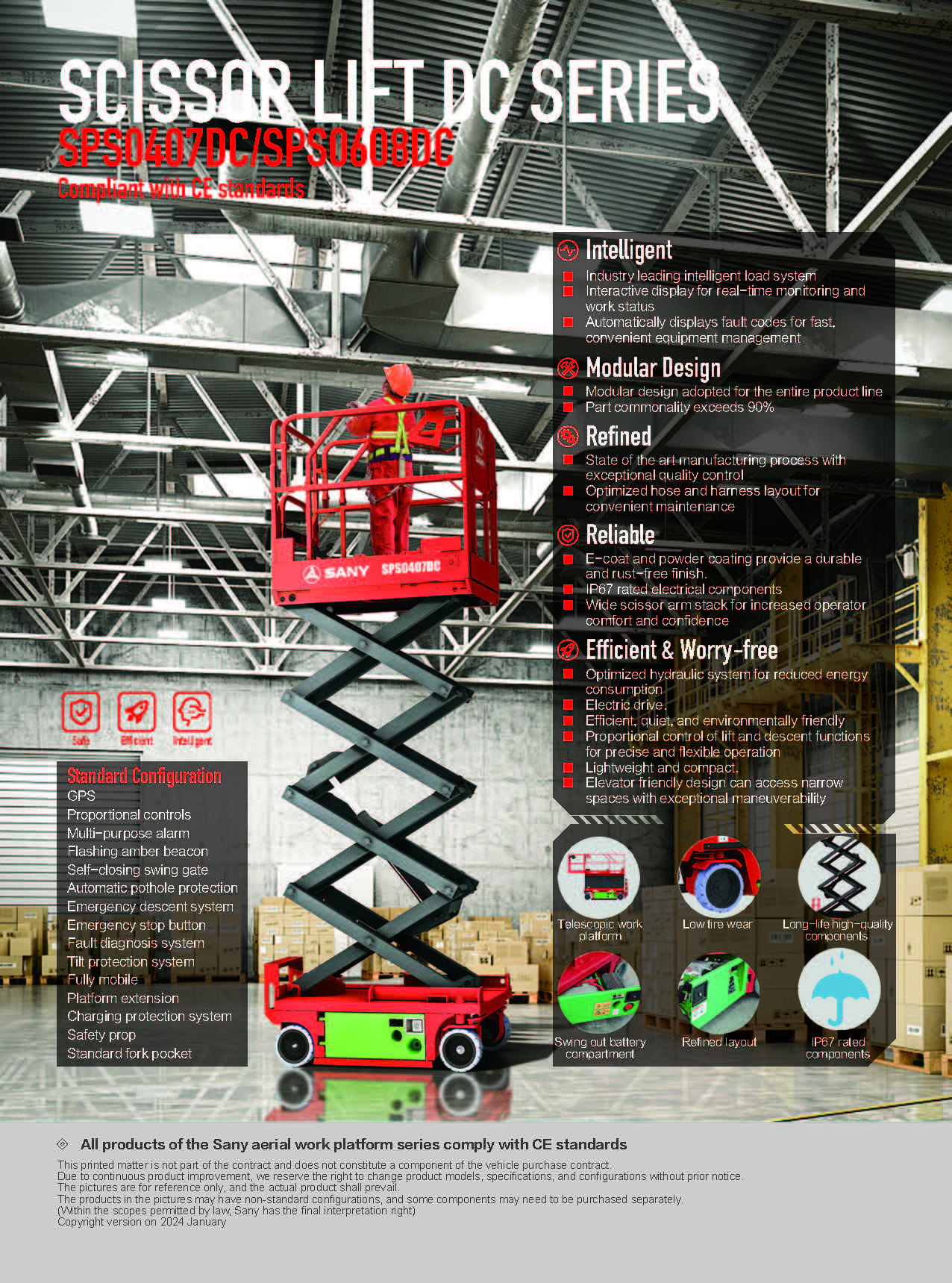

Scissors lift DC series

Battery:2x12V/115Ah
AC100-240V
Drive motor: DC24V

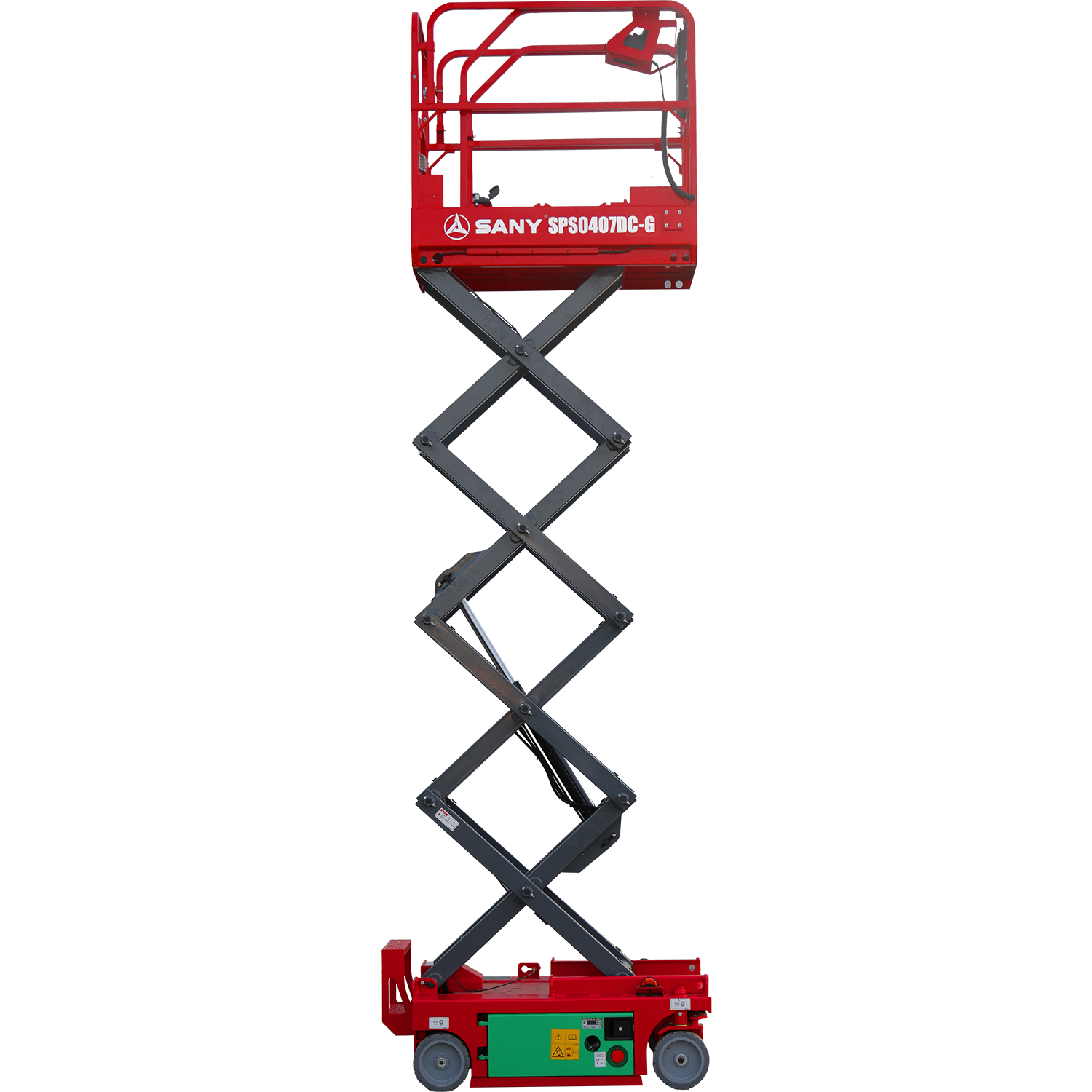

SPS0407
Working height max: 6.5m
Platform height max: 4.5m
Lift capacity: 240kg

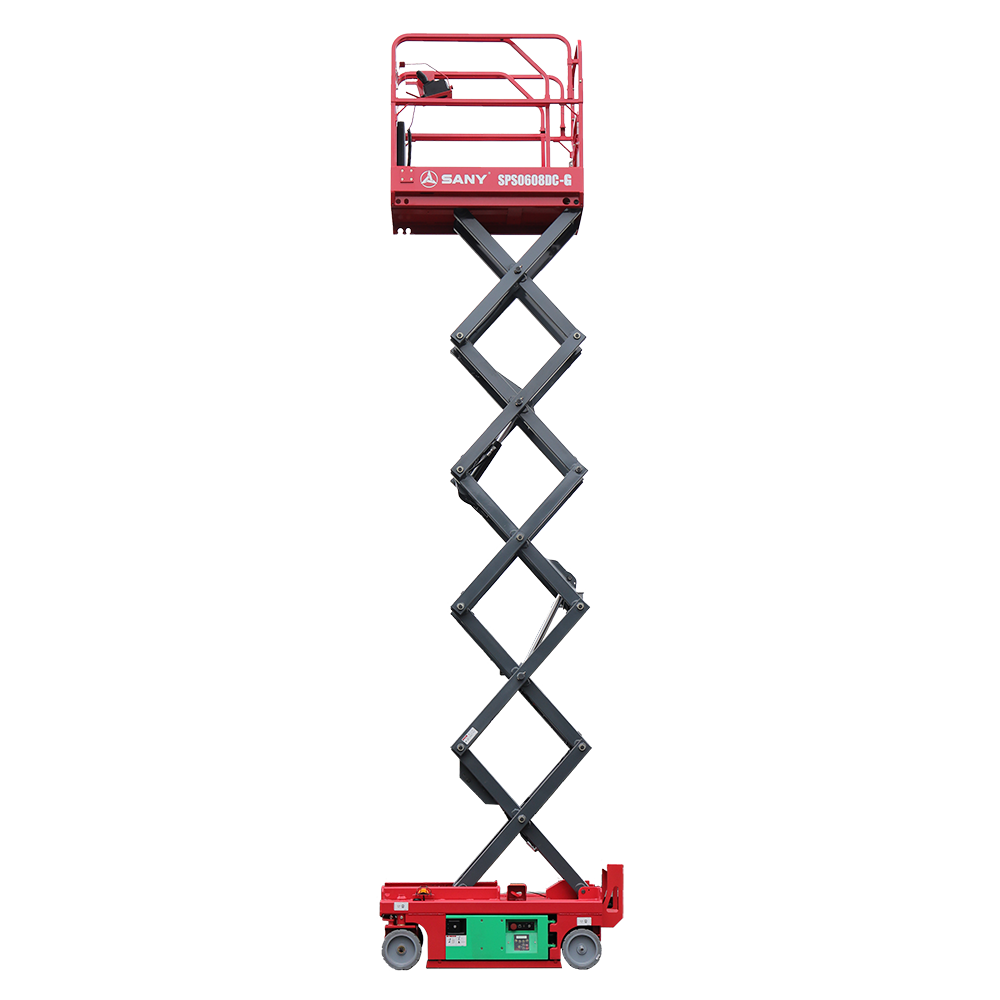

SPS0608
Working height max: 7.6m
Platform height max: 5.6m
Lift capacity: 230kg

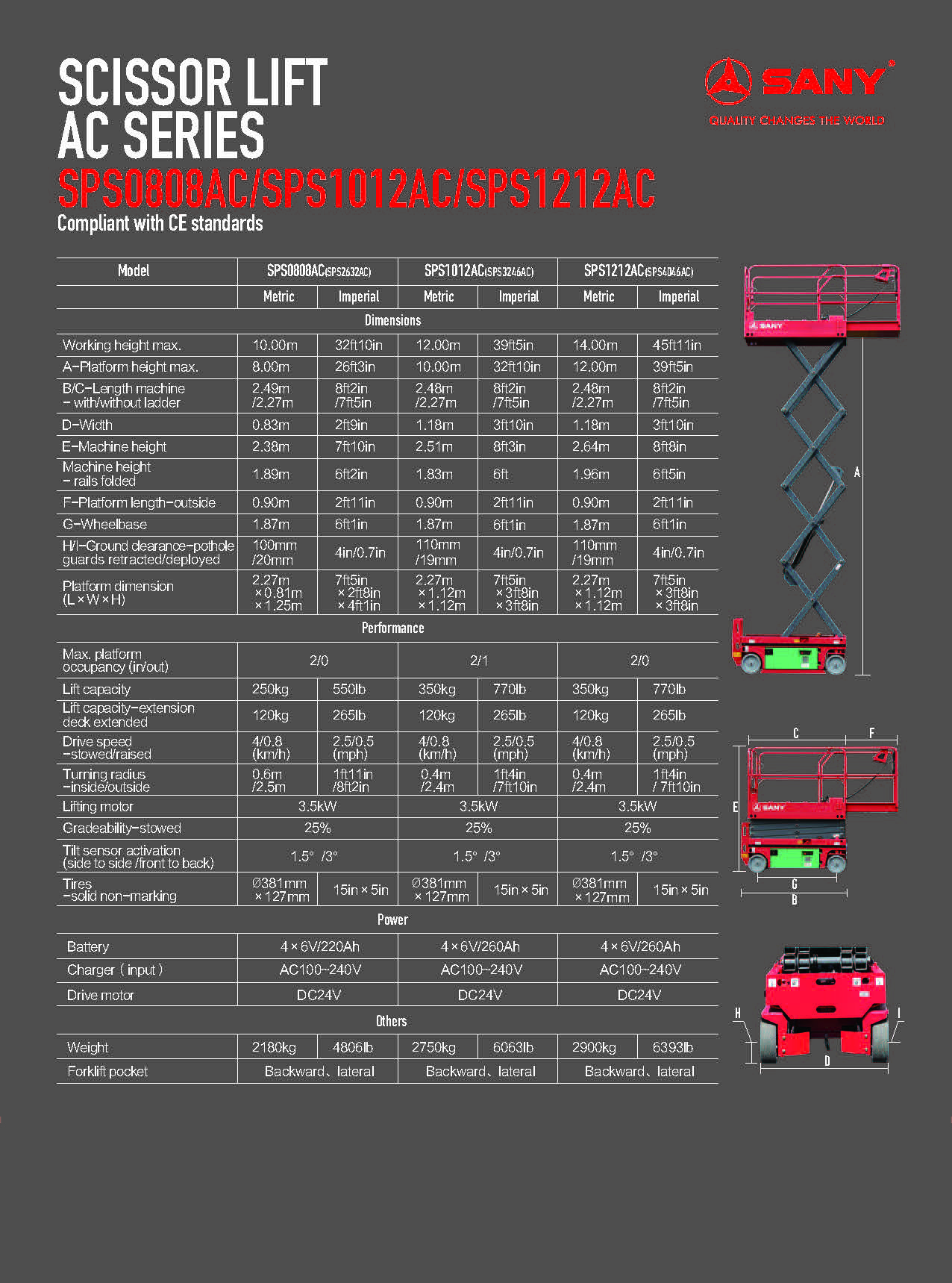

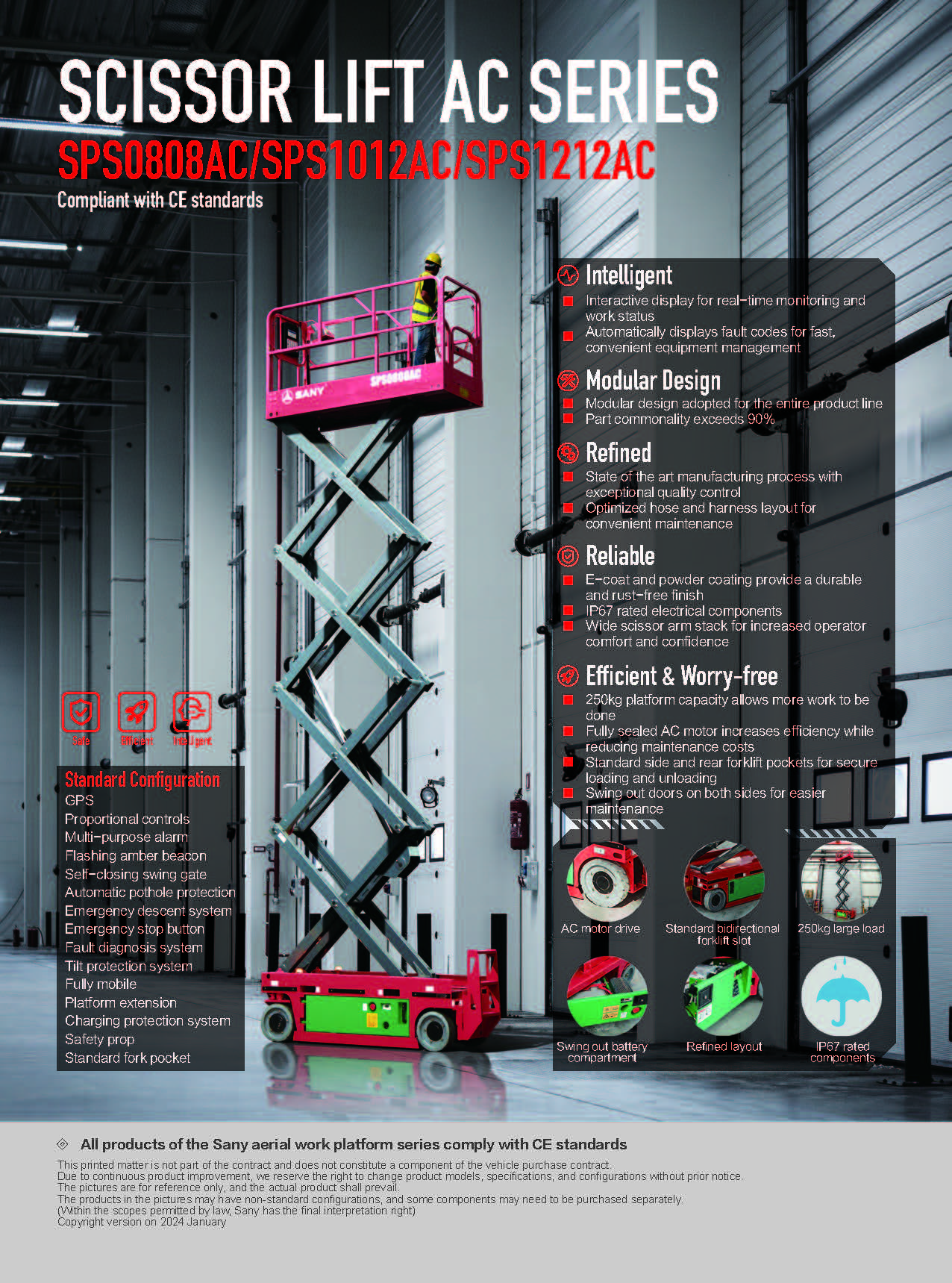

Scissors lift AC series

Battery: 4x6V/220Ah
Drive motor:DC24V
all AC series are backward and lateral hole

SPS0808AC
Working height max: 10m
Platform height max: 8m
Lift capacity: 250kg

SPS1012AC
Working height max: 12m
Platform height max: 10m
Lift capacity: 350kg

SPS1212AC
Working height max: 14m
Platform height max: 12m
Lift capacity: 350kg

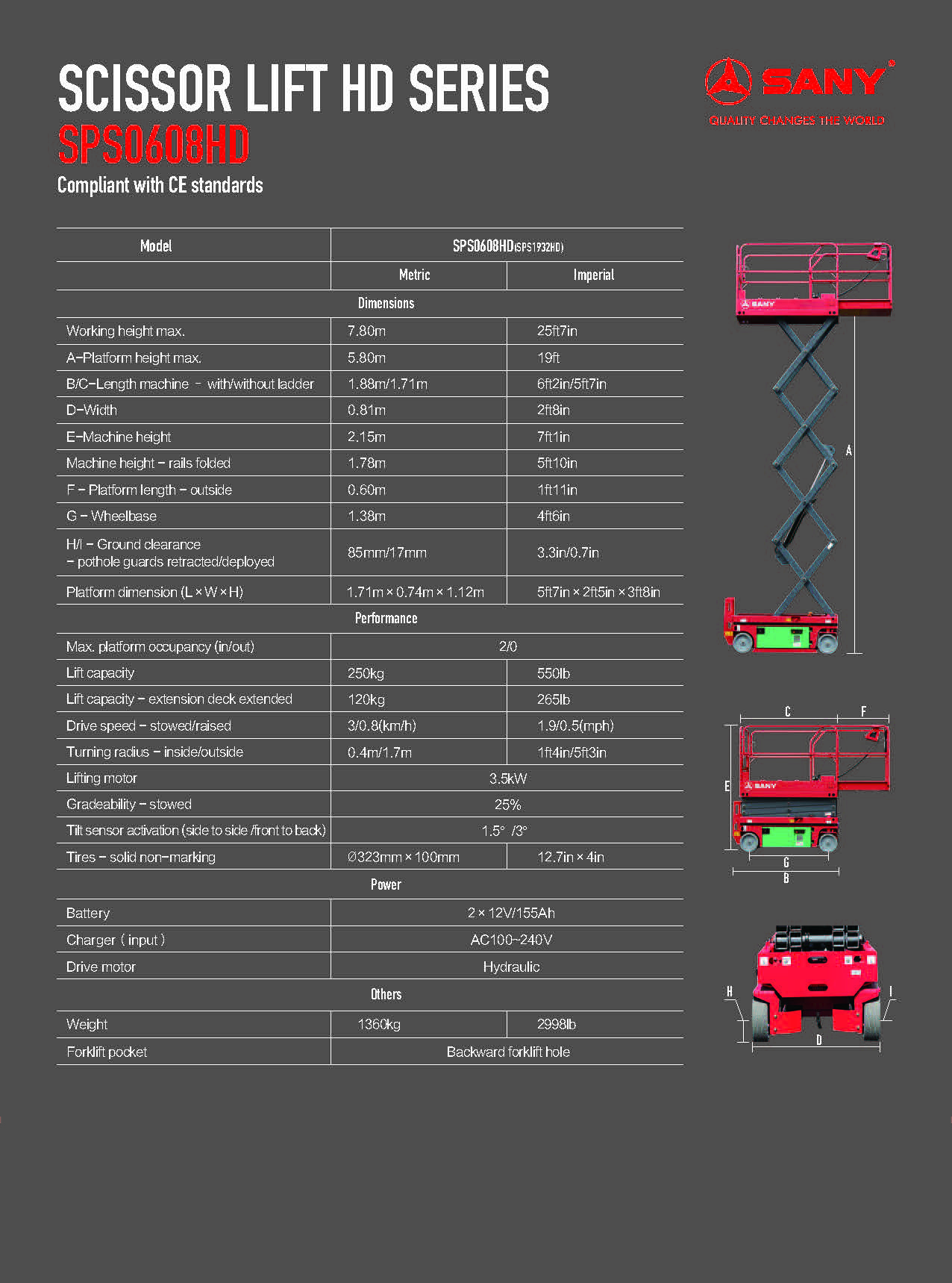

Scissors lift HD Series

Hydraulic drive motor
2x12V/155Ah

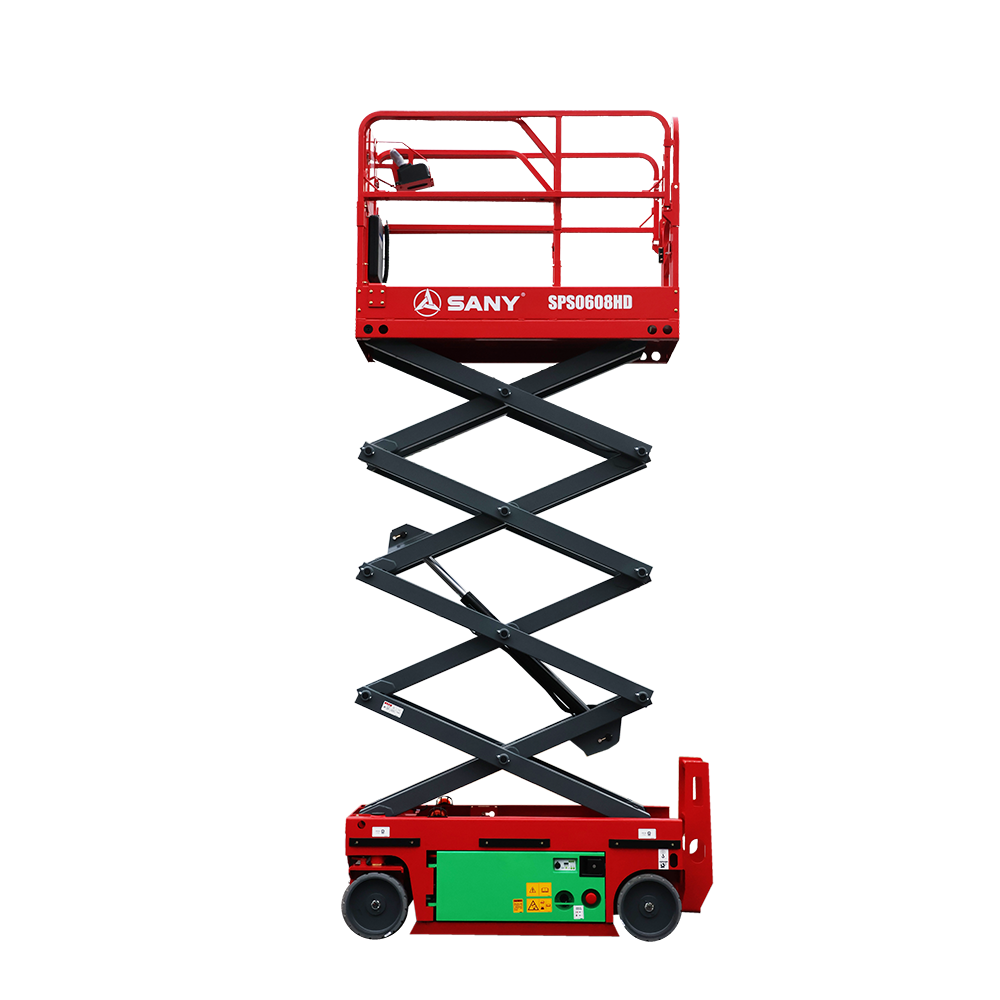

SPS0608HD
Working height max: 7.8m
Platform height max: 5.8m
Lift capacity: 250kg

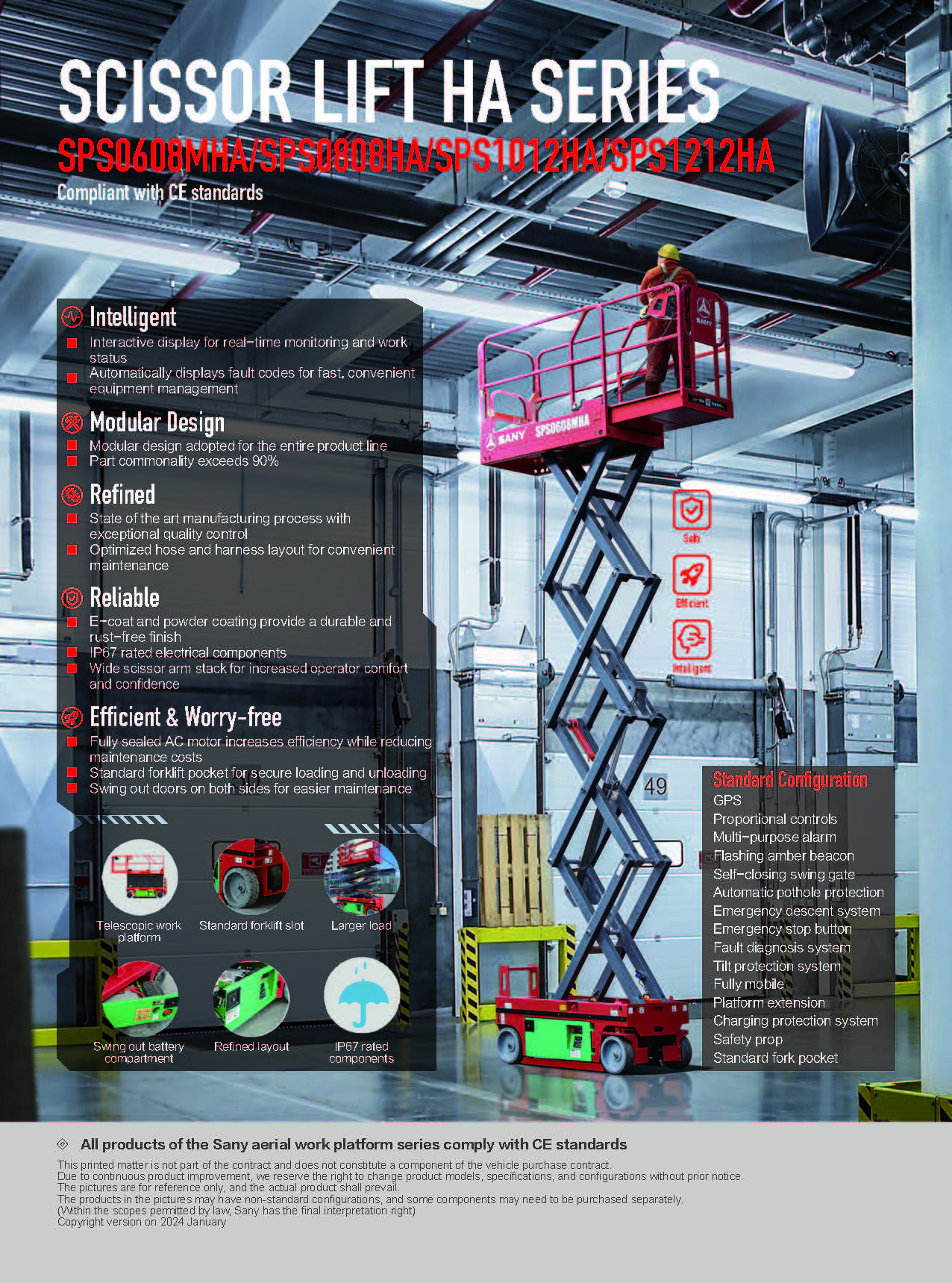

Scissors lift HA Series
Hydraulic drive motor

SPS0608MHA
backward forklift hole
Working height max: 8.0m
Platform height max: 6.0m
Lift capacity: 230kg

SPS0808HA
backward & lateral forklift hole
Working height max: 10.0m
Platform height max: 8.0m
Lift capacity: 250kg

SPS1012HA
backward & lateral forklift hole
Working height max: 12.0m
Platform height max: 10.0m
Lift capacity: 350kg

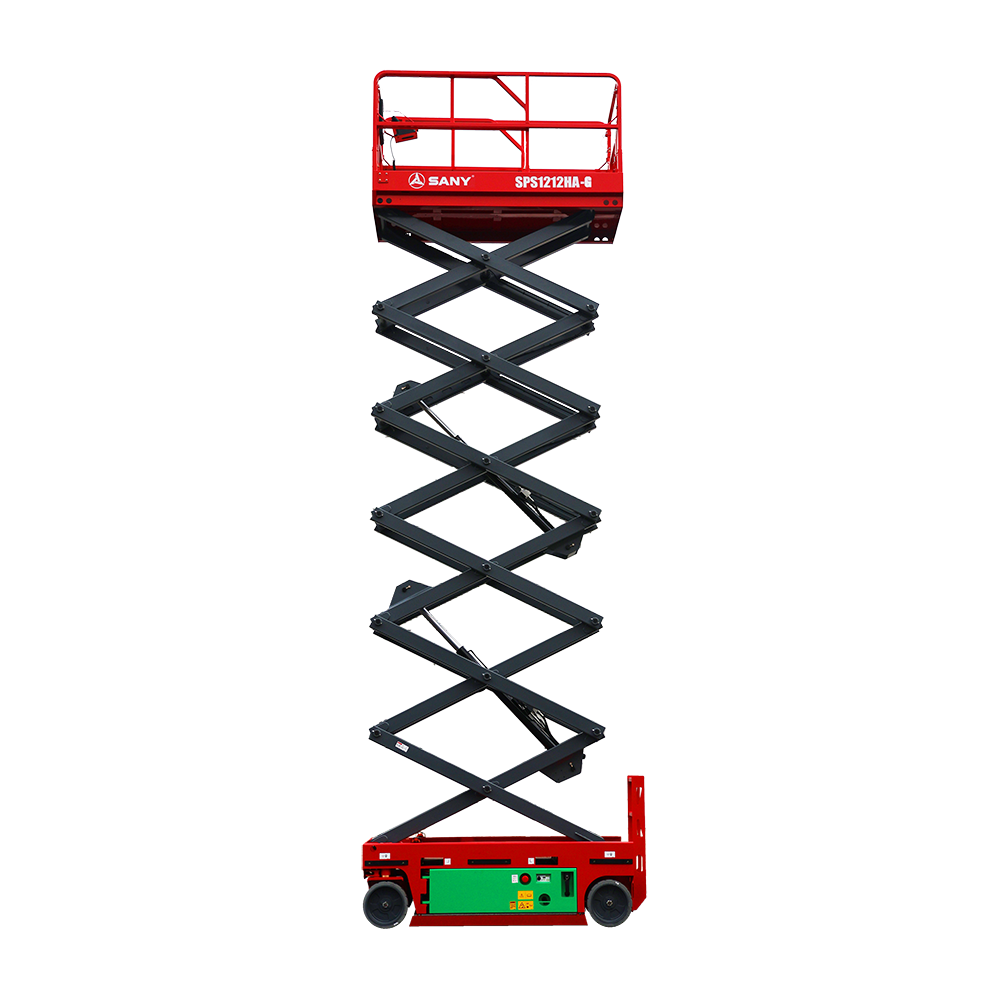

SPS1212HA
backward & lateral forklift hole
Working height max: 14.0m
Platform height max: 12.0m
Lift capacity: 350kg

Articulating Boom lift

stable sunken layout for smoother operations
360continuous turntables rotation
180 platform rotation

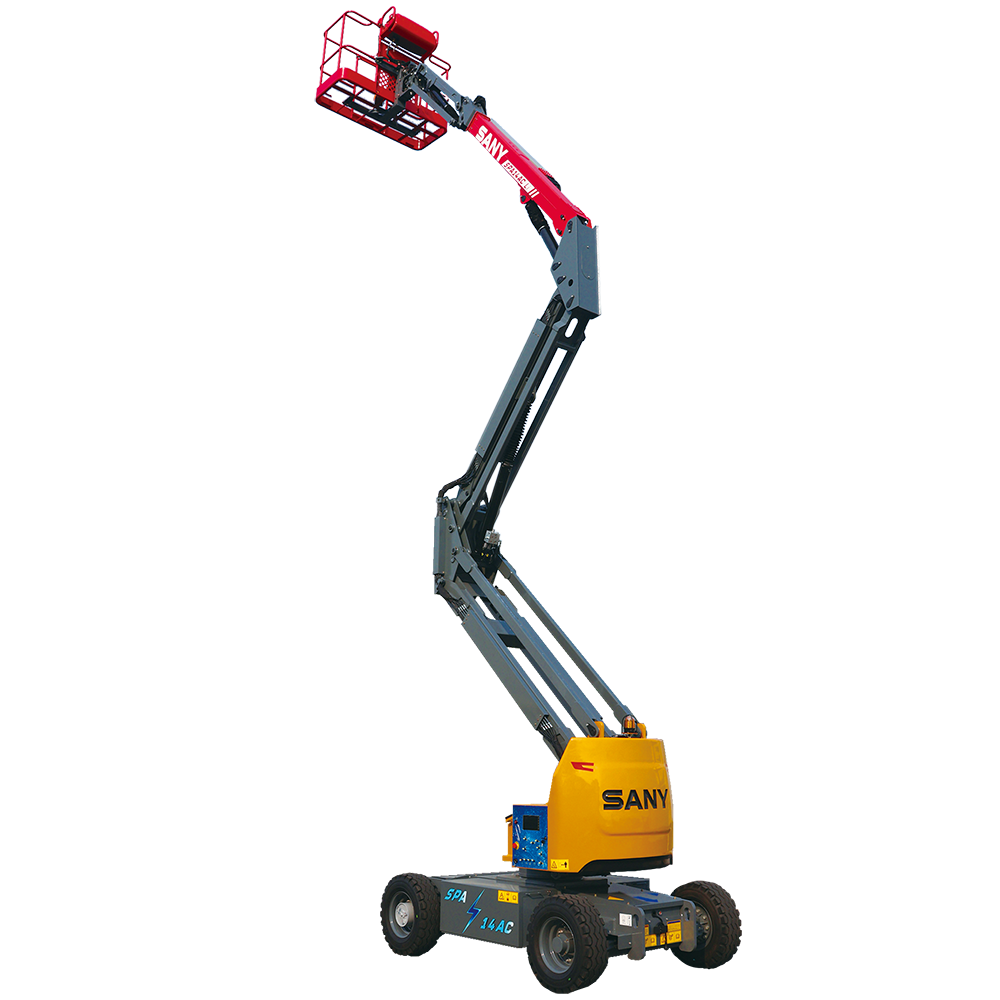

SPA14AC
Turntable tail swing: 0.26m
Working height max: 16.0m
Platform height max: 14.0m
Horizontal outreach max:7.25m
Lift capacity: 248kg(unrestricted)

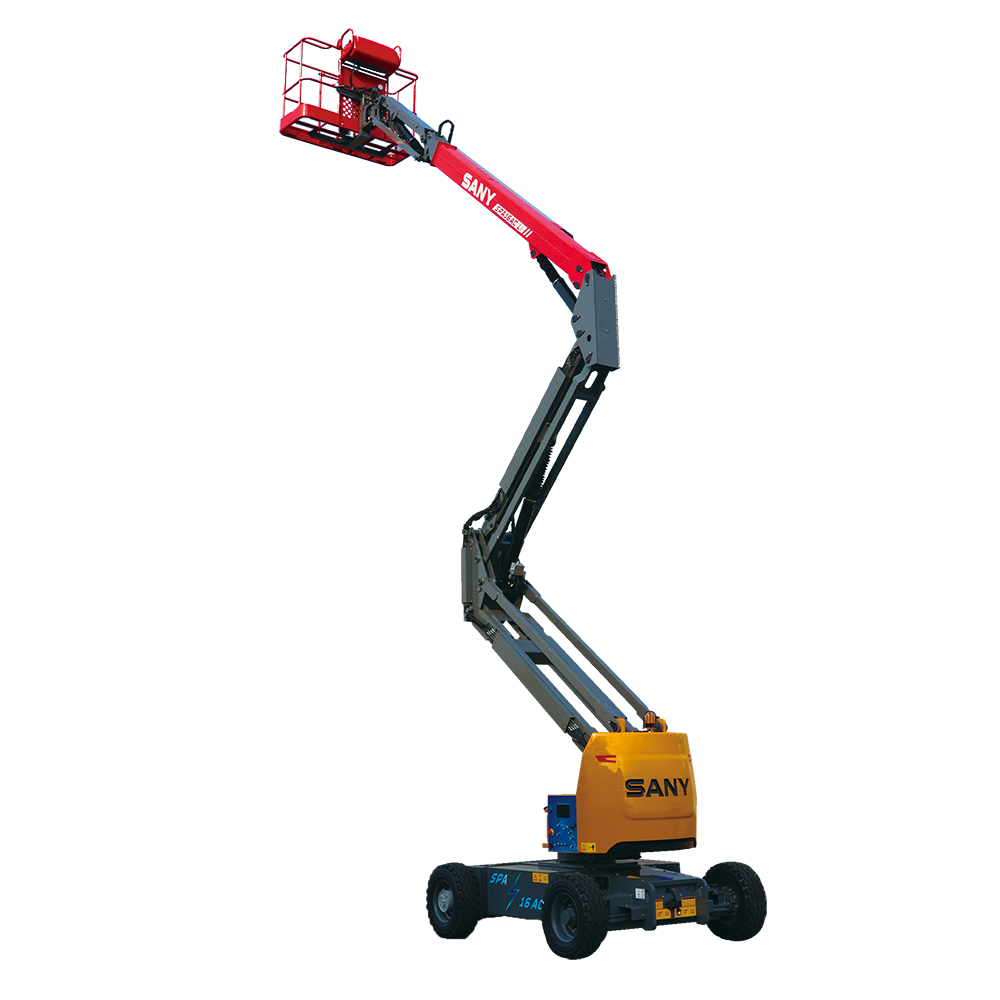

SPA16AC
Turntable tail swing:0.17m
Working height max: 17.7m
Platform height max: 15.7m
Horizontal outreach max:9.0m
Lift capacity: 248kg(unrestricted)

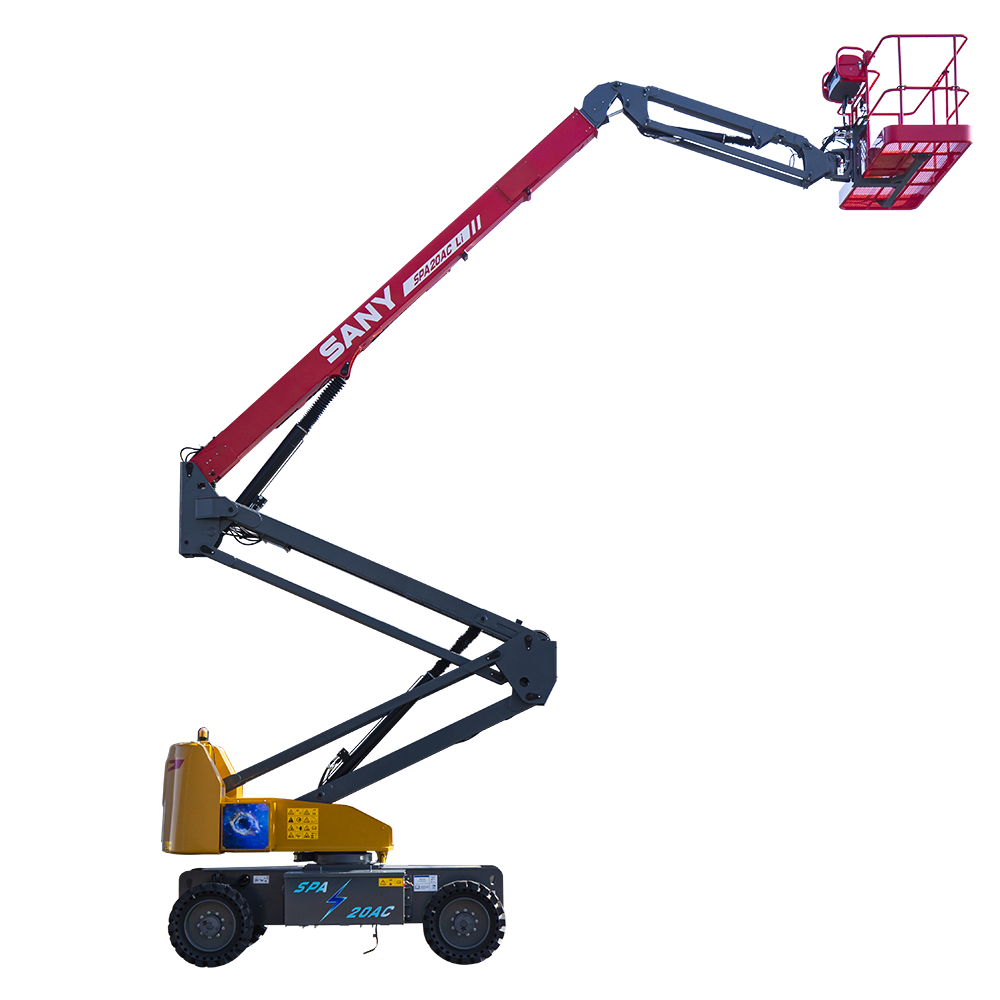

SPA20AC
elevates in tight spaces
tight turning radius, maximum 4.6m inside and 7.5m outside

Turntable tail swing:0.6m
Working height max: 22.0m
Platform height max: 20.0m
Horizontal outreach max:12.4m
Lift capacity: 258/320kg (unrestricted/restricted)

Telescopic Boom lift

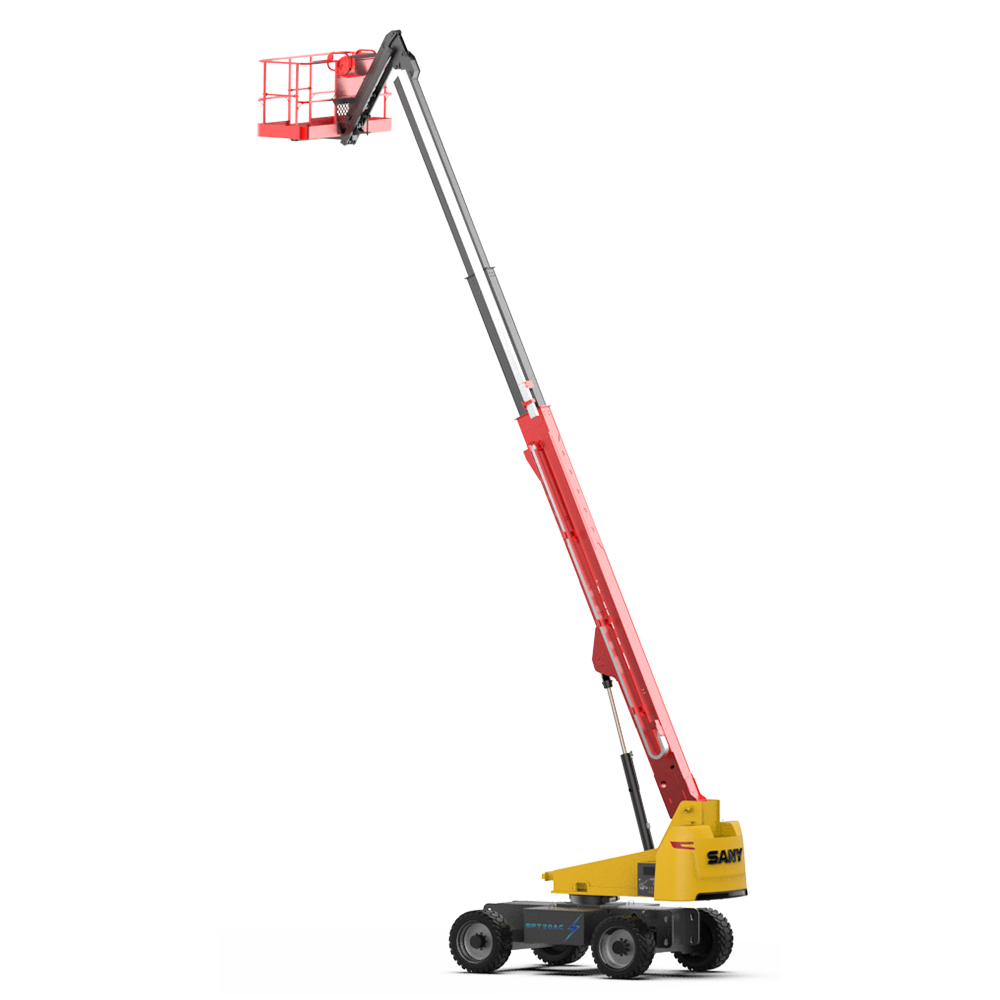

SPT20AC
elevates in tight spaces
tight turning radius, maximum 4.6m inside and 7.5m outside

Turntable tail swing:1.45m
Working height max: 21.8m
Platform height max: 19.8m
Horizontal outreach max:15.2m
Lift capacity: 230/300/450kg (unrestricted/restricted/restricted)

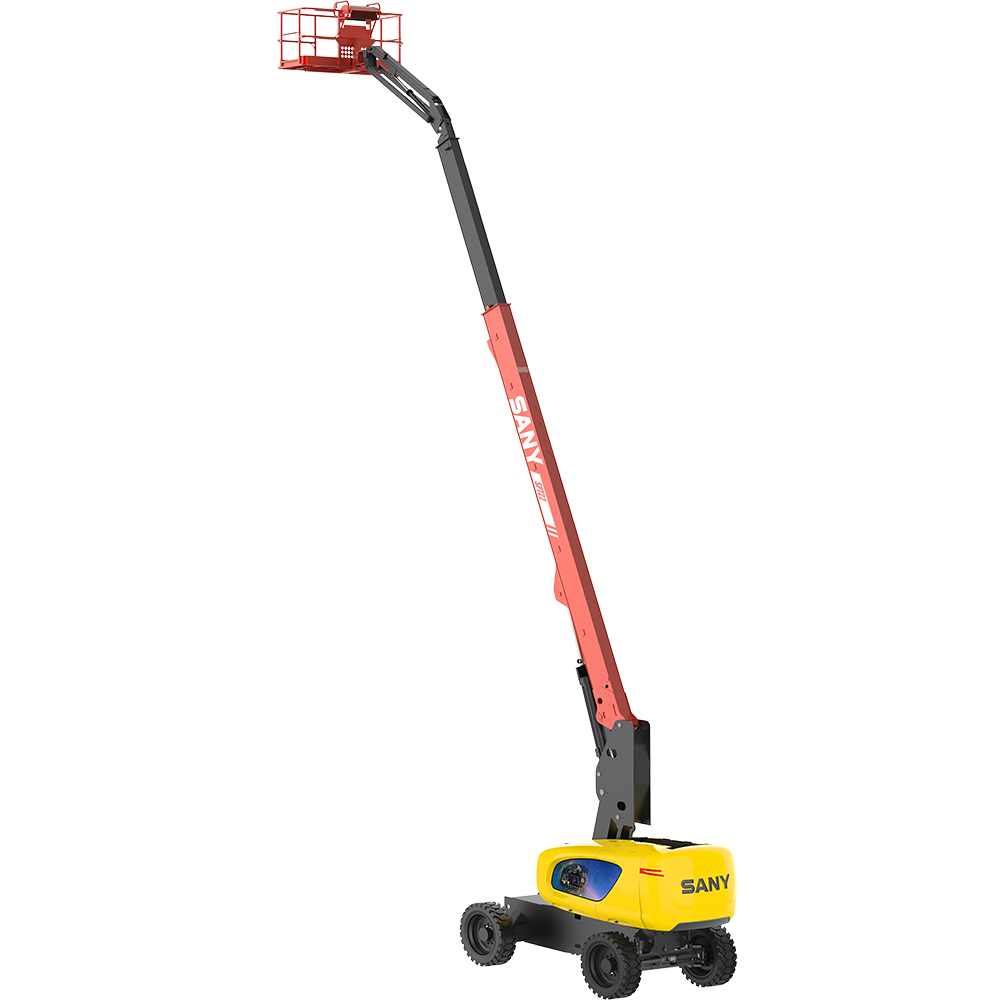

SPT22
elevates in tight spaces
tight turning radius, maximum 2.4m inside and 5.5m outside
3 capacity zones

Turntable tail swing:1.5
Working height max: 24.4
Platform height max: 22.4
Horizontal outreach max:16.5
Lift capacity: 300/400/480kg (unrestricted/restricted/restricted)

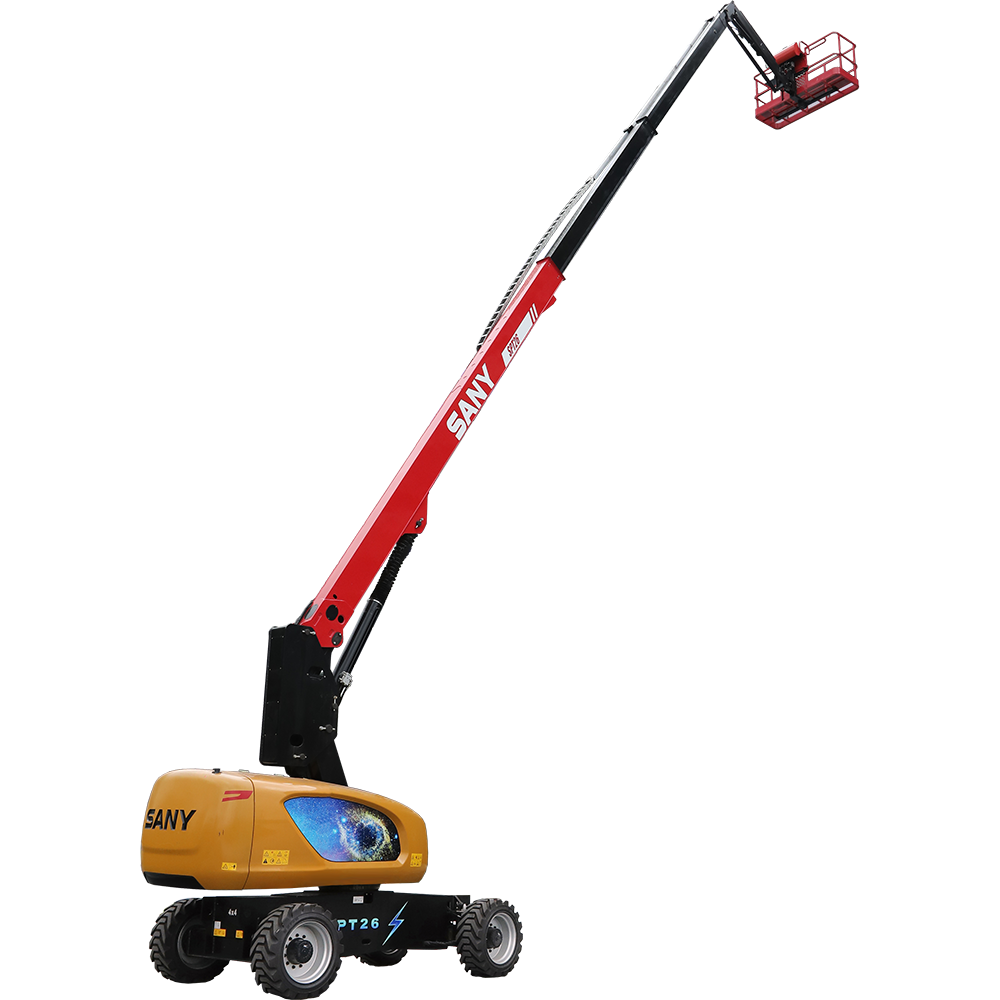

SPT26
elevates in tight spaces
tight turning radius, maximum 3.66m inside and 6.86m outside
3 capacity zones

Turntable tail swing:1.5m
Working height max: 28.7m
Platform height max: 26.7m
Horizontal outreach max:20.3m
Lift capacity: 300/400/480kg (unrestricted/restricted/restricted)


Scissors lift Model Height
SPS0407DC 3.8M
SPS0608DC 5.6M
SPS0608HD 6M
SPS0808HA 8M
SPS1012HA 10M
SPS1212HA 12M
SPS1414HA 14M
Articulating Boom lift Model Height
SPA14AC 14M
SPA16AC 16M
SPA20AC 20M
Telescopic Boom lift Model Height
SPT20AC 20M
SPT22 22M
SPT26 26M
SPT26AC 26M
